Fence Generator





-----------------------------------------------------------------------
Current Version of Fence Generator:                                ver0.9
Current Version of Maya:                                          Maya 2018
-----------------------------------------------------------------------




Overview
This tool is created for users using Autodesk Maya to help the user quickly build fences in an environment. The tool can be easily used by create and select a curve in the scene, and generate the selected fence section along that curve.




Tool Walkthrough
  • The user needs to have a curve selected for fence to be generated on

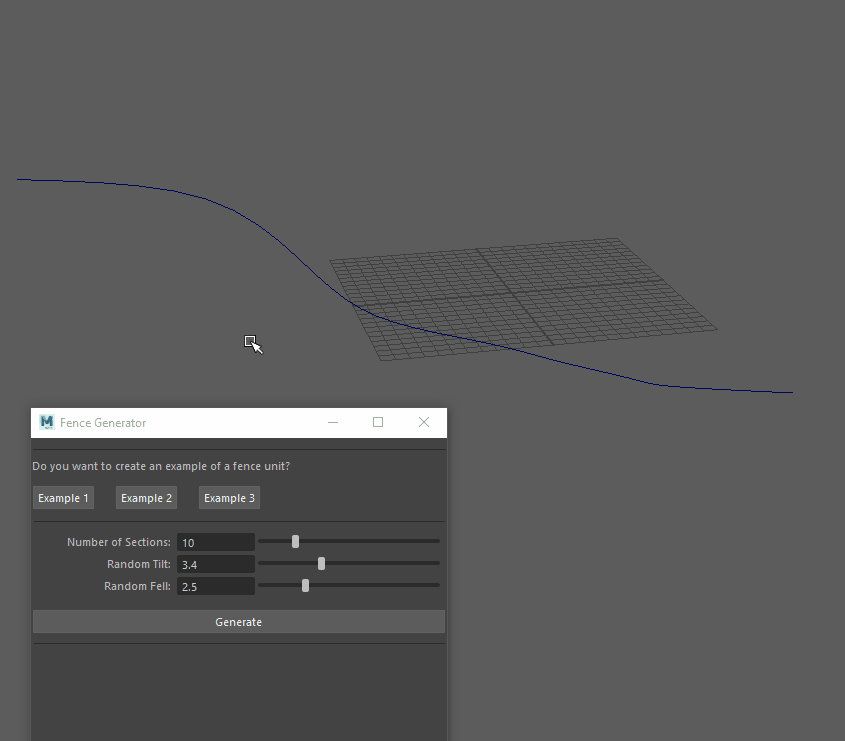

  • If the user wants to use example fences the tool created, they can click on one of the examples and continue to the next part

  • If the user wants to create and use their own fence unit for generation, they need to name their fence unit “FG_Fence_Unit”
  • To Achieve the best result, it is encouraged to:

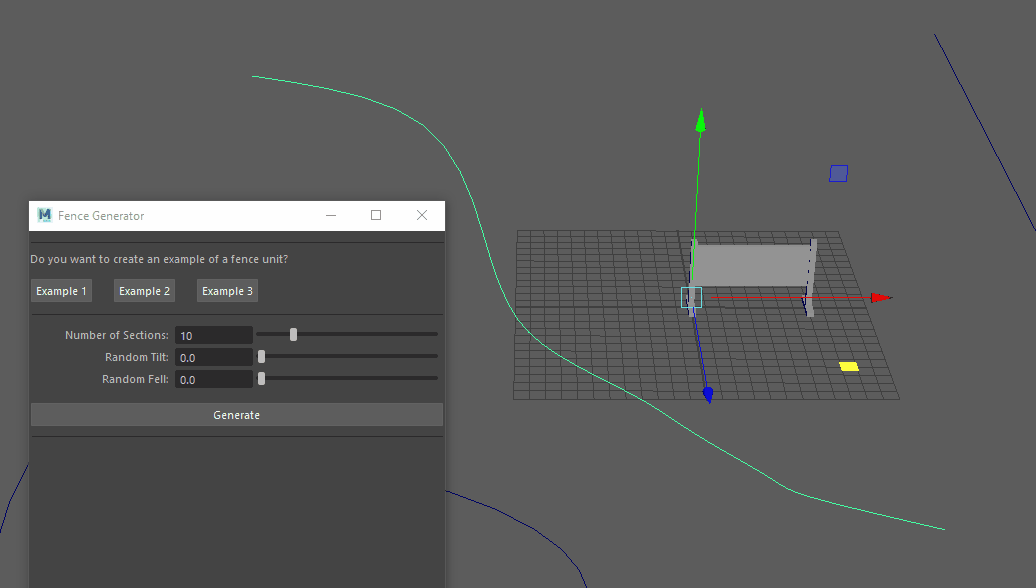

    • Place the pivot at the one side the fence, close to the position where it touches the ground (Shown in GIF)
    • Have the fence unit pointing toward positive X direction
  • Make sure the fence unit does not have any construction history
  • Adjust the number of sections the fence unit will be placed along the curve
  • Adjust how tilted the fences should look like
  • Adjust how frequent will there be a fallen fence (flat on the ground)
  • Click Generate to see result




Limitations
  • If multiple curves are selected, fences will only generate on the first curve selected
  • The sliders cannot update in real-time, so the user needs to undo the generation if they don’t like it
  • The size of these examples maybe too large or too small for some environment, so the user needs to adjust manually to fit their environment before generation



Future Plans
  • Allows the user to multi-select a curve (as the path) and an object (as a fence unit) and start generating fences
  • Allows the user to add variants while building fences, so that not all fences on a path looks the same
  • Instead of deleting all locators after generation, add all locators from the previous generation into a list, and let the user decide whether to delete or not




Downloads

  • Test Maya File:
FenceGenerator_TestScene.mb

  • Script File:
FenceGenerator_v0.9.py
